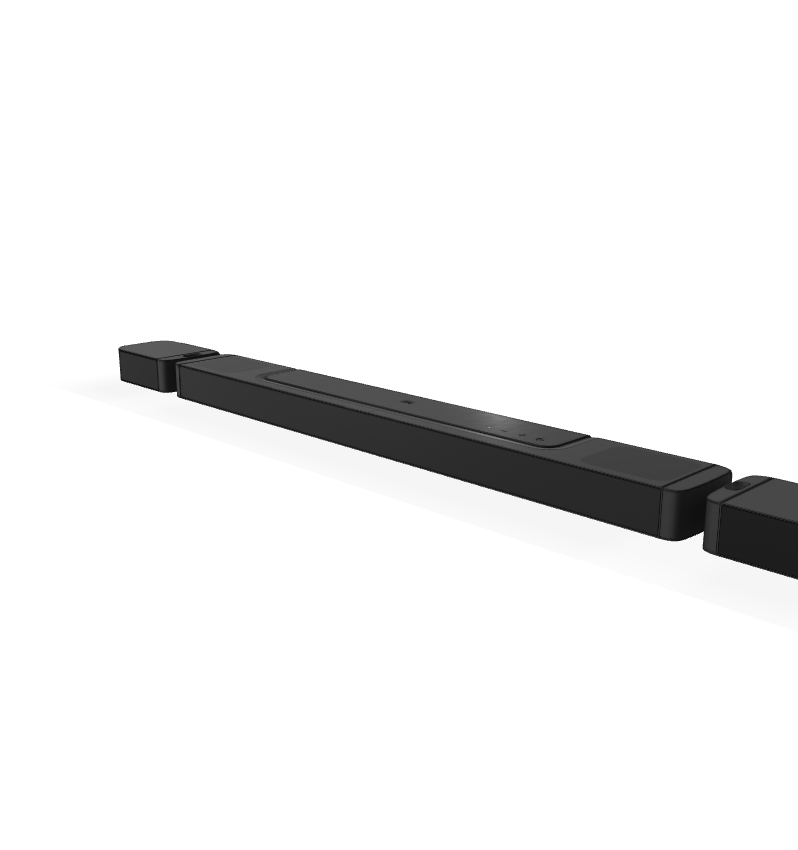

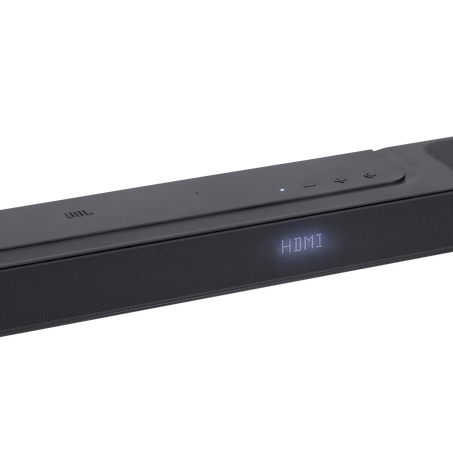

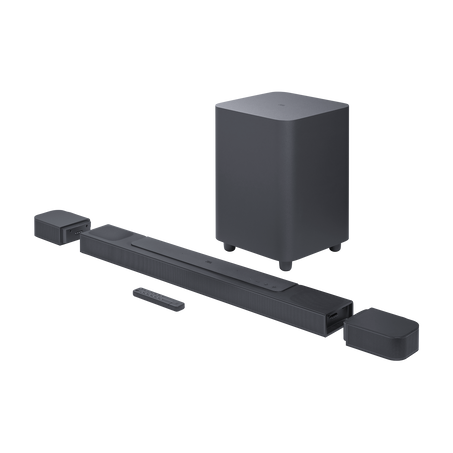

Sound Bar 800

True Dolby Atmos Surround Sound
Immerse yourself in theater-quality 3D sound. With two up-firing drivers, the JBL Bar 800 delivers true Dolby Atmos 3D surround sound.

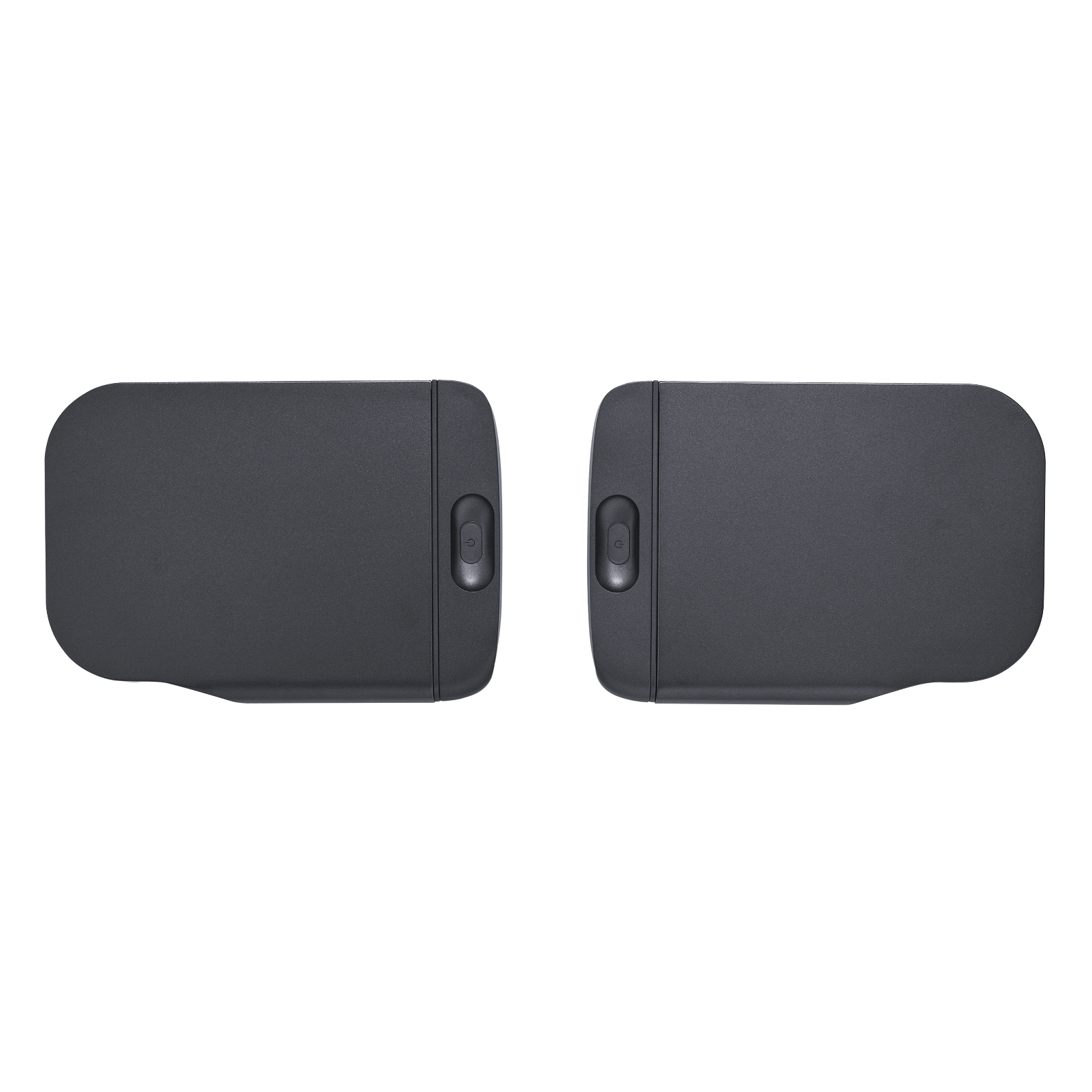

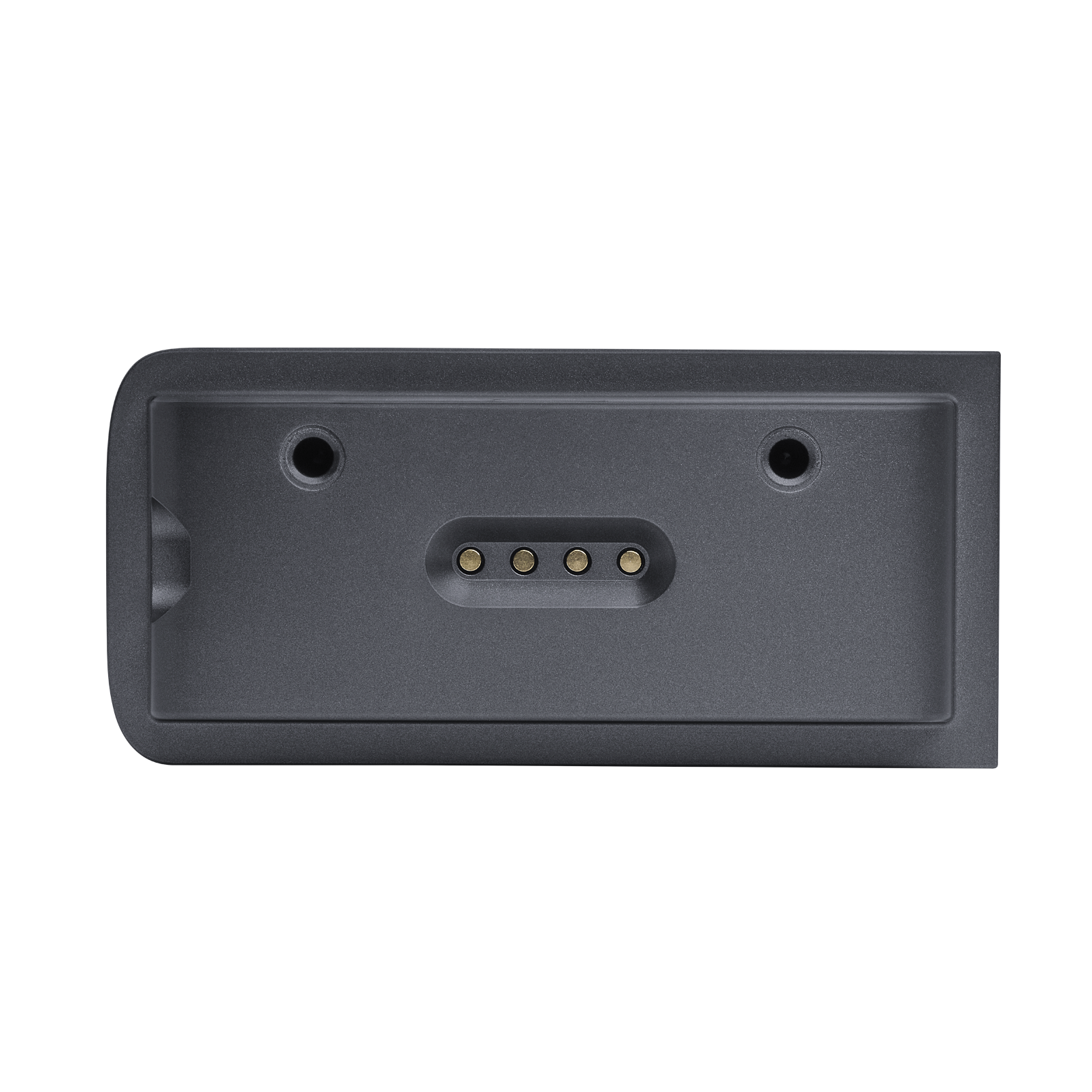

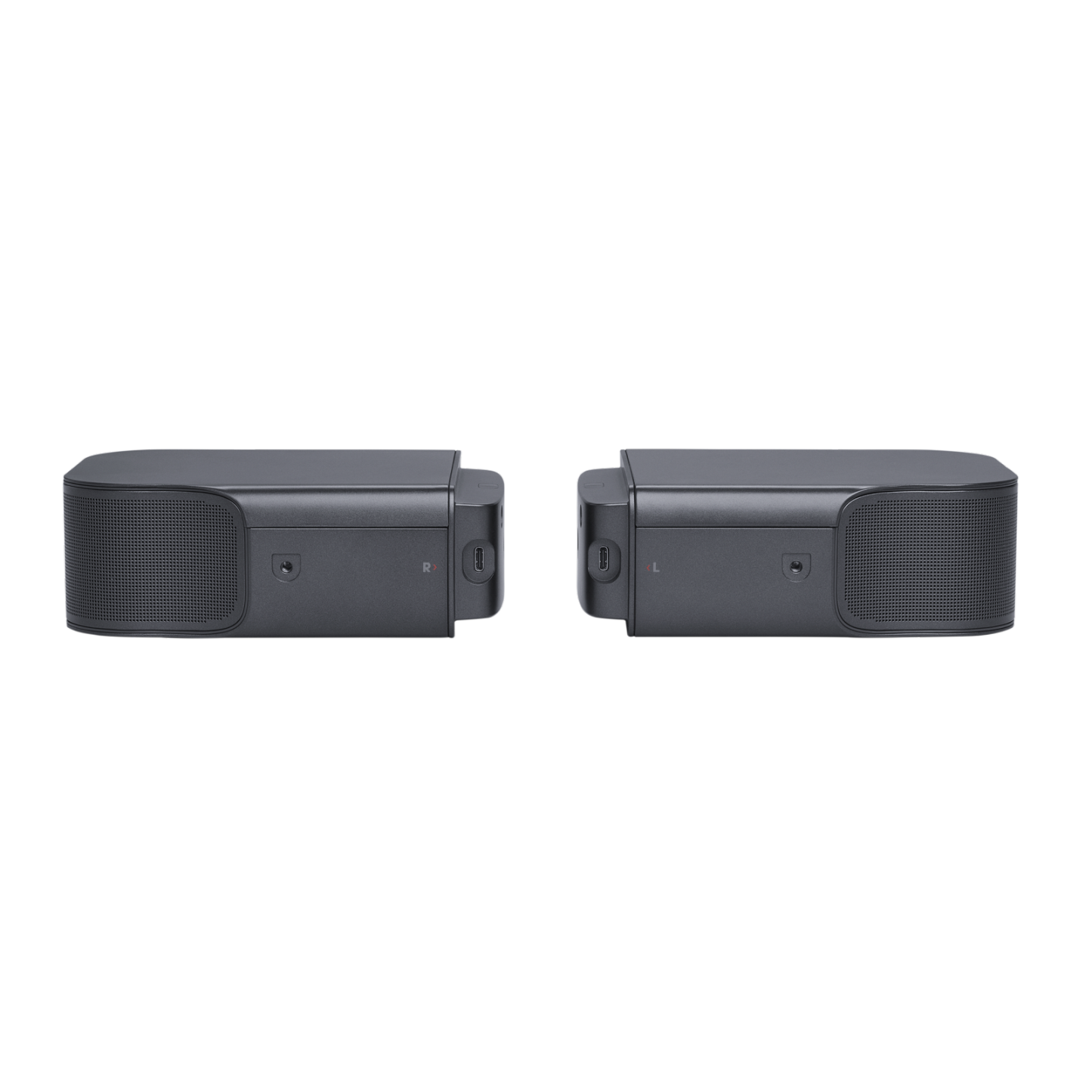

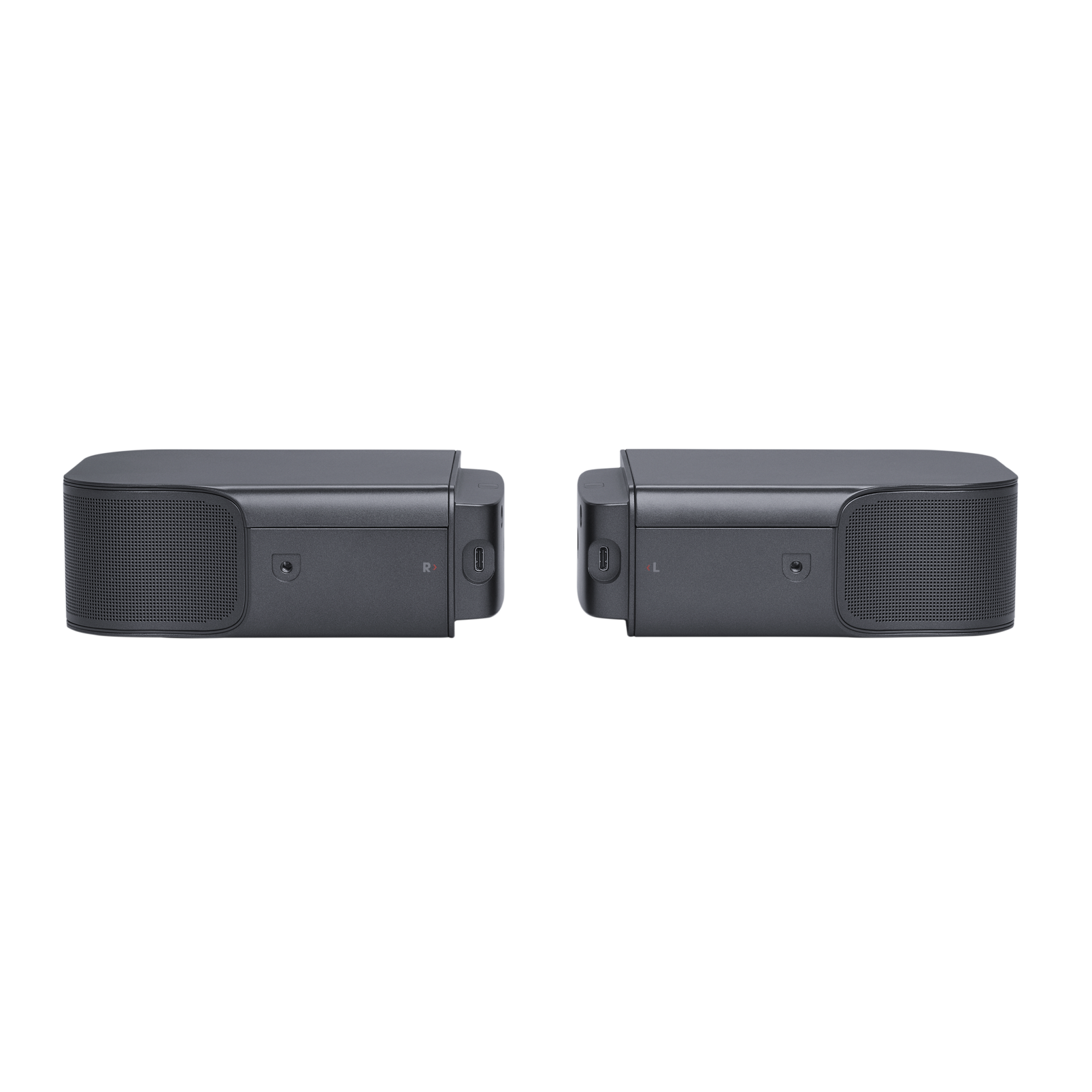

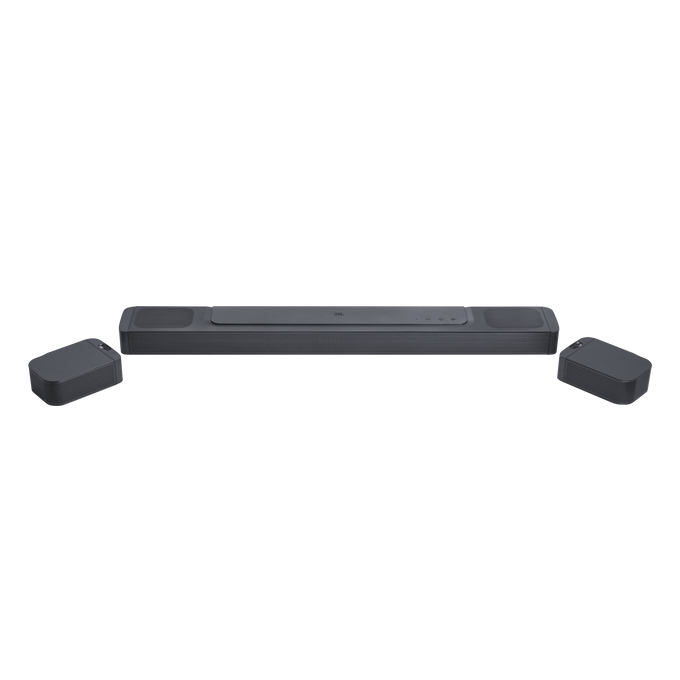

Real surround sound with detachable surround speakers

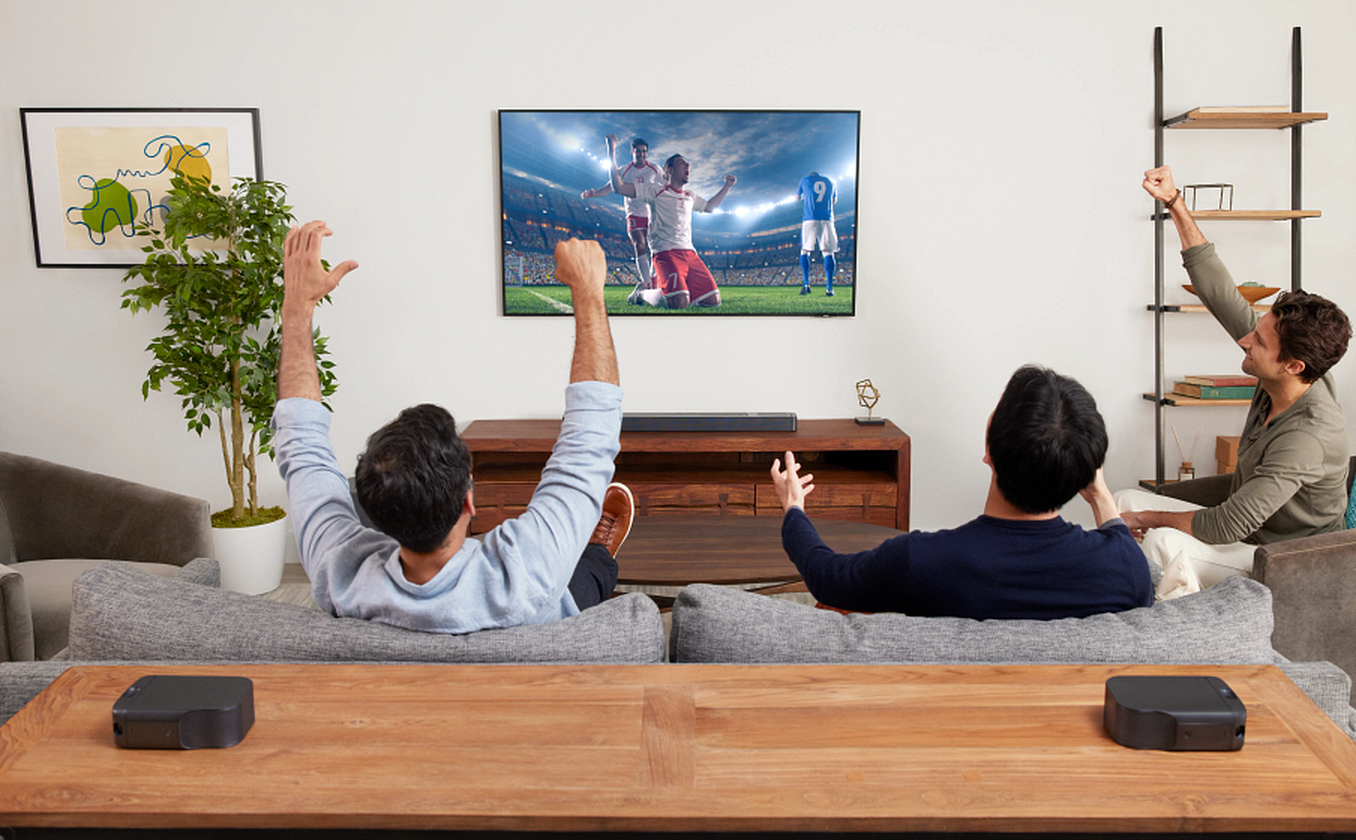

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

720W output power
With 720 watts of total system power the JBL Bar 800transforms your movies, music and games intoimmersive sound experiences and pulls you into themiddle of the action.

10" Wireless subwoofer
Thrilling, precise bass from a mighty 10" wirelesssubwoofer brings the excitement to your action moviesand the emotion to your music.

PureVoice Dialogue Enhancement Technology
PureVoice technology uses our unique algorithm tooptimize voice clarity to ensure you never miss a wordof dialogue, even when the surround effects are at theirpeak.

HDMI eARC with 4K Dolby Vision passthrough
Enjoy uncompressed Dolby Atmos surround soundthrough a single HDMI cable thanks to the HDMIeARC connection. The HDMI input connection alsooffers 4K video quality from a compatible video playeror gaming console.

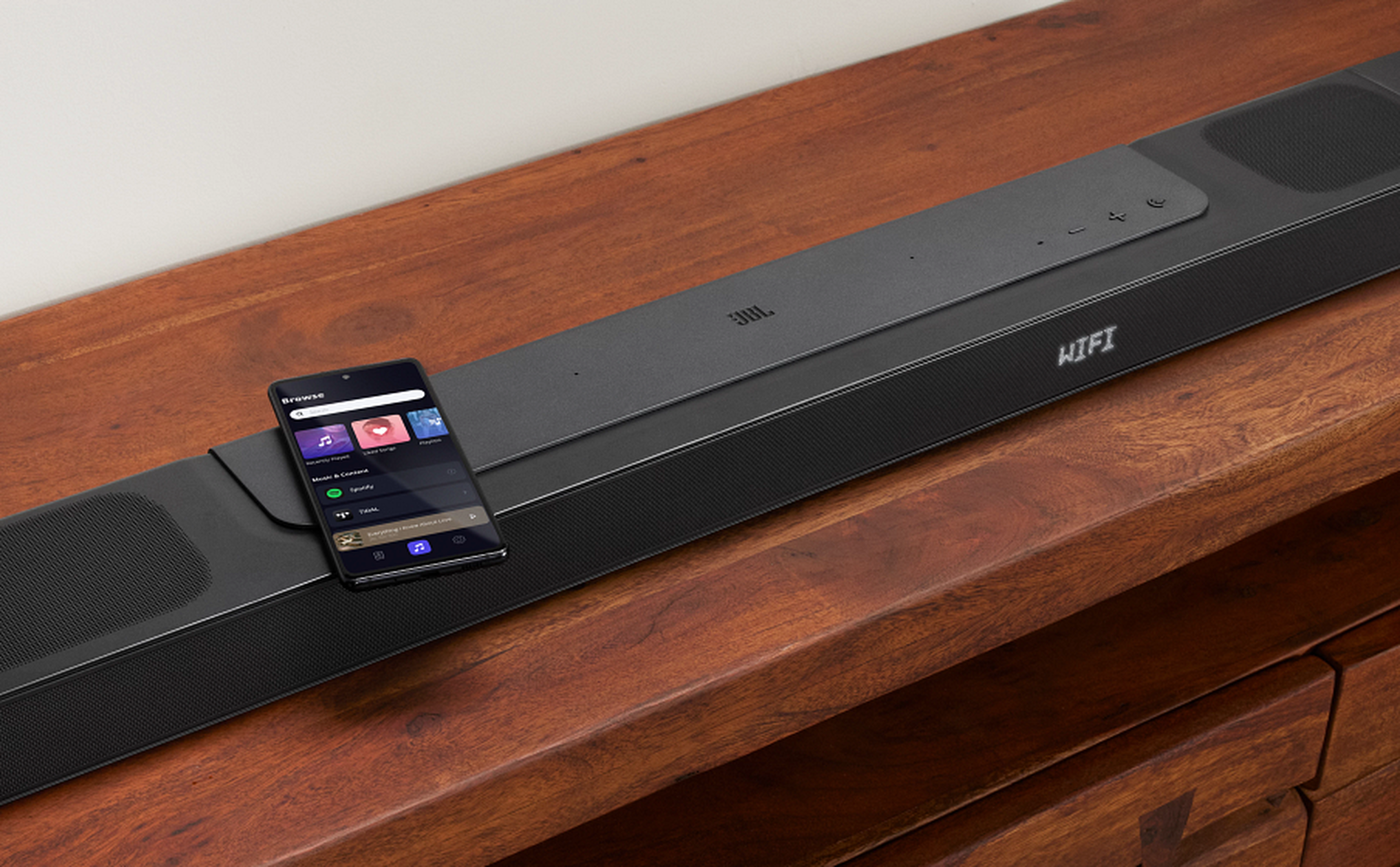

JBL One App
Customize EQ and control all of your compatiblespeakers with a single convenient app. The JBL Oneapp helps you easily set up the soundbar, personalizesettings, and browse the integrated music services tofindyournewfavoritesong.

Easy sound calibration
Every room is different. Our calibration feature ensuresthat the JBL Bar 800 delivers the best 3D surroundeffects for any interior and room layout.

Works with voice assistant-enabled speakers
Simply link the JBL Bar 800 with your voice assistant-enabled device and you can instantly ask Alexa, GoogleAssistant, or Siri to stream all your favorite music to theesoundbar.
General Specifications
- Power supply
- 100 - 240V AC, ~ 50/60Hz
- Networked standby power
- < 2.0W
- Operating temperature
- 0°C - 45°C
Audio Specifications
- Total speaker power output (Max @THD 1%)
- 720W
- Soundbar output power (Max @THD 1%)
- 340W
- Surround speaker output power (Max @THD 1%)
- 2x 40W
- Subwoofer output power (Max. @THD 1%)
- 300 W
- Soundbar transducer
- 3x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

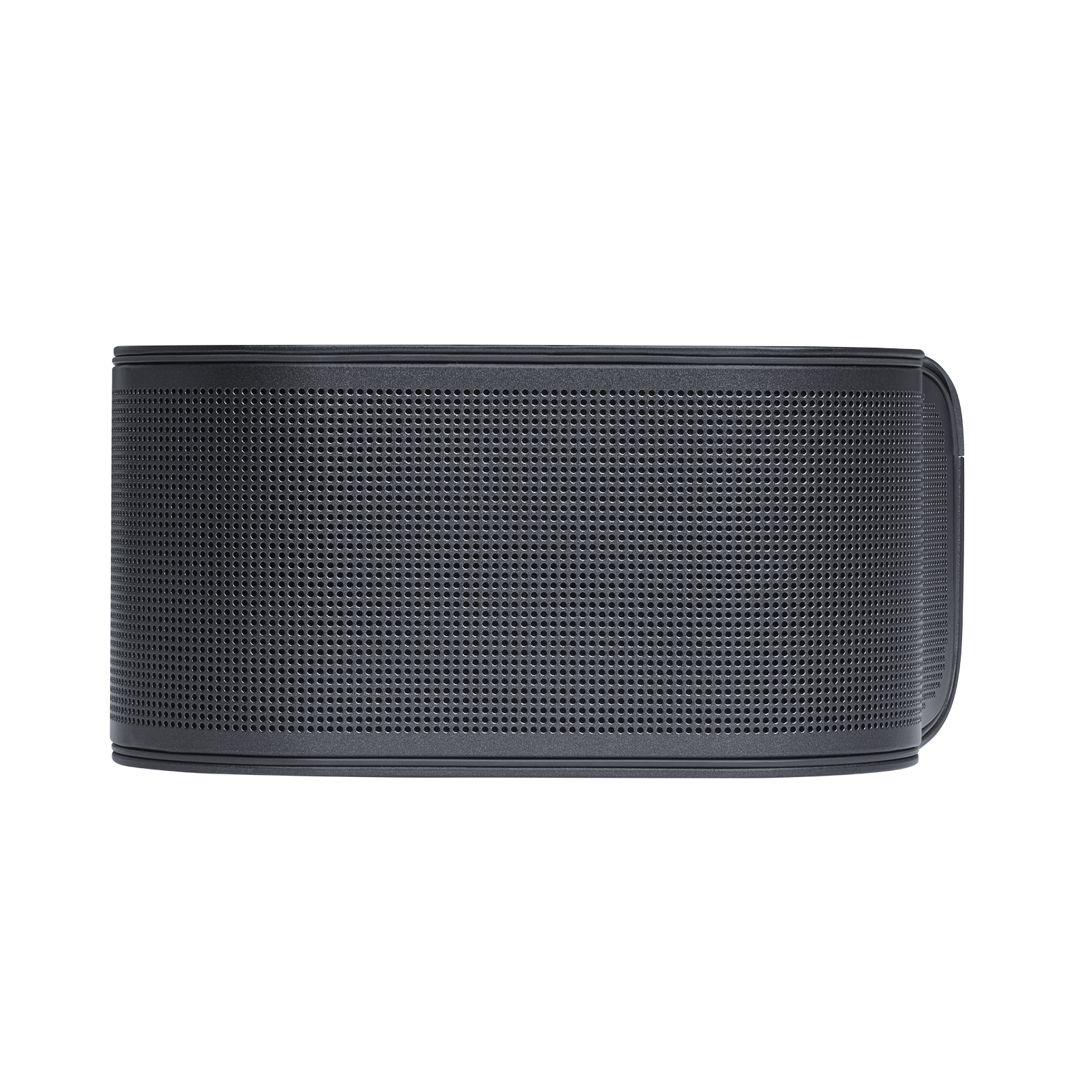

- Surround speaker transducer
- 1x (46x90)mm racetrack driver
- Subwoofer transducer
- 10” (260mm)
- Frequency response
- 35Hz - 20kHz (-6dB)
- Audio inputs
- 1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Total soundbar dimensions (W x H x D)
- 1174 x 56 x 120 mm / 46.2" x 2.2" x 4.7"
- Main soundbar dimensions (W x H x D)
- 884 x 56 x 120 mm / 34.8" x 2.2" x 4.7"

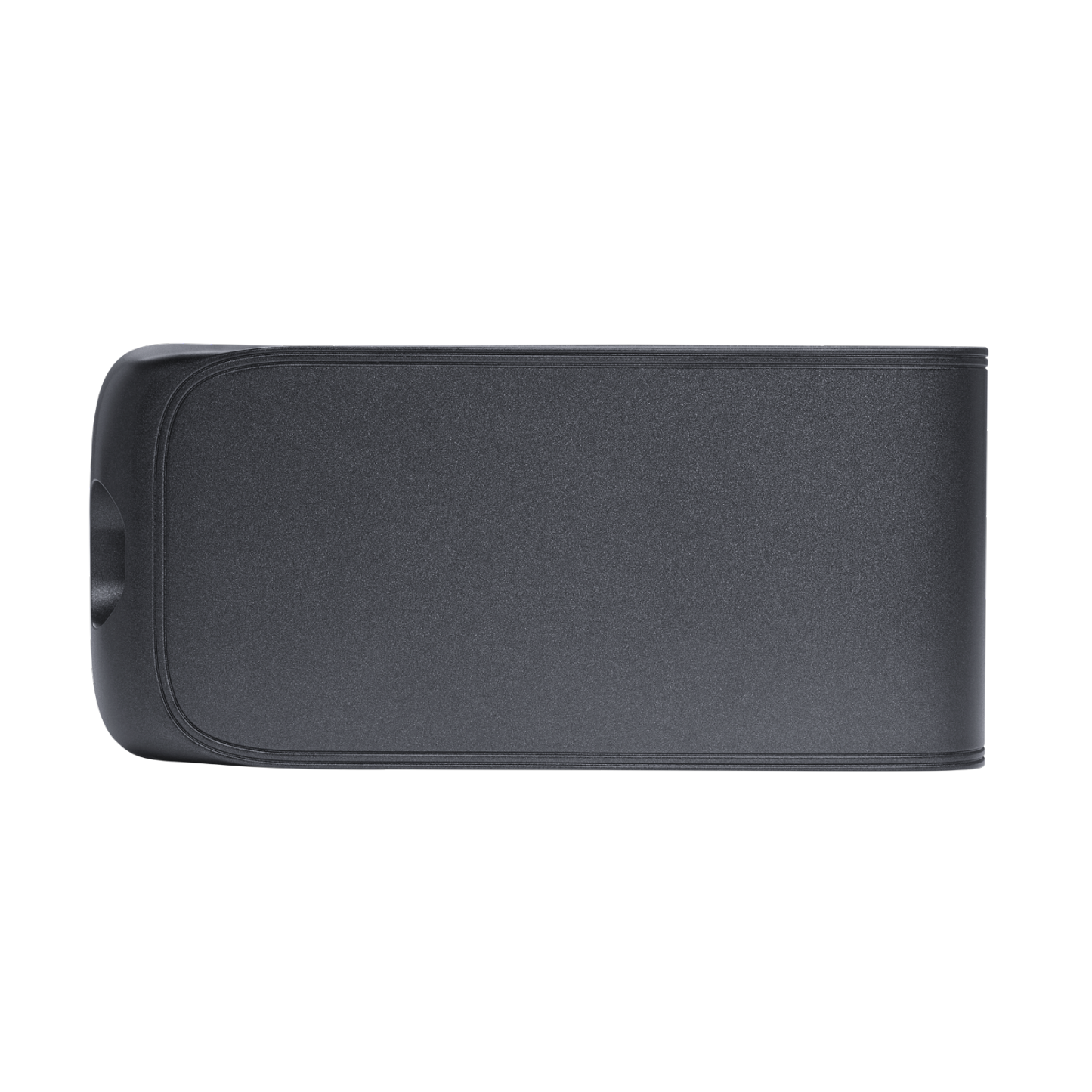

- Detachable surround speaker dimensions (each) (W x H x D)
- 145 x 56 x 120 mm / 5.7" x 2.2" x 4.7"
- Subwoofer dimensions (W x H x D)
- 305 x 440.4 x 305 mm / 12" x 17.3" x 12"
- Soundbar weight
- 3.4 kg / 7.4 lbs
- Detachable surround speaker weight (each)
- 1.3 kg / 2.8 lbs
- Subwoofer weight
- 10 kg / 22 lbs
- Packaging dimensions (W x H x D)
- 1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"
- Packaging Weight
- 18.9 kg / 41.6 lbs
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file format
- MP3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 - 48 kHz
- MP3 bitrate
- 80 - 320 kpbs
- Bluetooth version
- 5.0
- Bluetooth profile
- A2DP 1.2, AVRCP 1.5
- Bluetooth transmitter frequency range
- 2400MHz – 2483.5MHz
- Bluetooth transmitter power
- <15dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
- 2.4G Wi-Fi transmitter power
- < 20dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
- 2.4G wireless transmitter frequency range
- 2406 - 2474MH
- 2.4G wireless transmitter power
- <10dBm (EIRP)
Battery
- Lithium battery
- 3.635V, 3283mAh
Video Specifications
- HDMI video input
- 1
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10, Dolby Vision
- 1x Main soundbar
- 2x Detachable wireless surround speakers
- 1x Wireless subwoofer
- Remote control with 2 x batteries
- Power cords (up to 8pcs depending on region SKUs)
- 1 x HDMI cable
- 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
- 4 x Side caps
- Quick start guide
- Safety instruction and Warranty card
- Wall mount template
